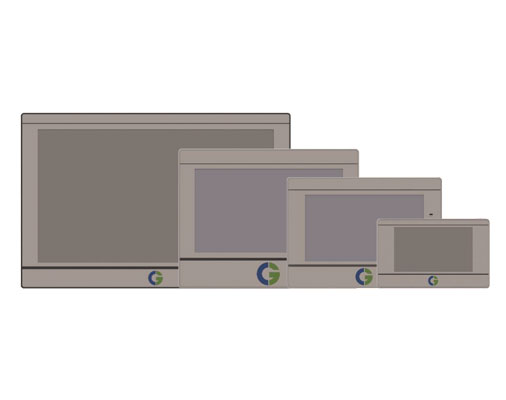

The HMI series (HMI040-0D, HMI070-ED, HMI070-0D, HMI100-ED, HMI100-0D, HMI150-ED) offers high-performance Human-Machine Interface solutions designed to enhance industrial automation efficiency. These touch screen panels come in various sizes, providing vibrant displays, reliable touch interfaces, and robust connectivity options. Built to meet industry standards, these HMIs ensure long-lasting performance even in demanding environments.
| Models | Display Size | Resolution (pixels) | Touch Panel | Backlight Module | Display Colour | Contrast Ratio | Brightness (cd/m²) | Power Supply | Power Consumption | Memory | CPU | FCC Compatibility | Withstand Voltage | IP Rating (Front Panel) | CE Certification | Shell Materials | COM Ports | USB Download Port | USB Flash Disk Port | Ethernet Port | Dimensions (mm) | Net Weight (kg) | Software | Temperature | Humidity | Shock Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HMI040-0D | 4.3” | 480x272 | 4-wire high precision touch panel | LED | 16.77 million | 400:1 | 400 | 12-24 VDC (±15%) | 3W | 128MB DDR3 | CortexA7 1GHz dual core | FCC Class A | 1000 VAC, 1min | IP65 | EN55032 and EN55035 | ABS+PC | COM1: RS232; COM2: 422/485 | ✓ | ✓ | × | 139*86*31 | 0.2 | EmoSmart+ | -20℃ to 55℃ | 5-95%RH | 10-25 Hz, 2G/30 min |
