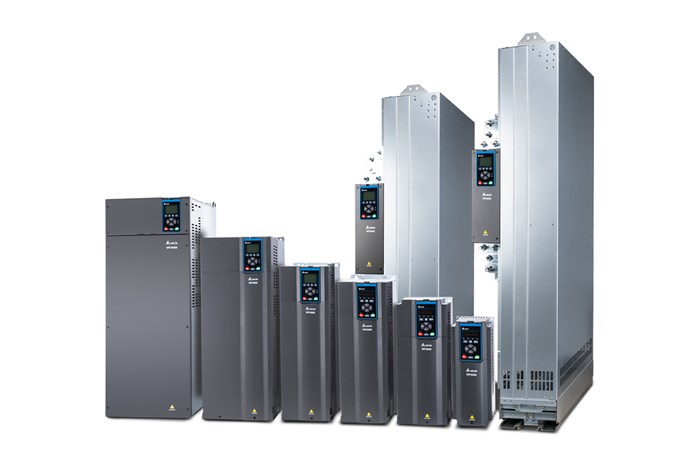

VP3000 Series

As global warming worsens and electricity costs rise sharply, energy conservation and carbon emission reduction are vital issues for manufacturers to cope with and they are also part of corporate social responsibility. Considering economic development and environmental protection, Delta has developed the Open-Loop Variable-Torque Standard Drive VP3000 Series for the fluid industry. The VP3000 Series can be widely applied in various fields such as water supply, wastewater treatment, HVAC, industrial water / electricity / gas supply, constant temperature control, and other applications to substantially enhance energy efficiency and reduce carbon emissions.

The VP3000 Series features excellent drive capabilities and stability. It also provides a predictive maintenance (PdM) function for key components and offers an upgrade for low harmonic improvement. Delta has introduced a new generation of drive for the fluid industry.

CFP2000 Series

Delta's CFP2000 series is an AC motor drive specially designed for HVAC, fans & pumps, and water treatment applications. It is designed with an IP55 enclosure to provide effective protection from dust and other particles and to offer a good level of protection from water. In addition, it includes many outstanding features and built-in functions that reduce setup and tuning time in operation and provide higher efficiency.

Features & Benefits

• IP55 and IP41 Protection: Offers robust enclosure options to suit different environmental needs.
• Optional Built-in Mains Switch: Available for IP55 models for added convenience and safety.
• Built-in EMC Filter: Complies with IEC61800-3 C2 and C1 standards to reduce electromagnetic interference.
• Integrated DC Reactor: Effectively lowers harmonic distortion in accordance with IEC61000-3-12.
• Durable PCB: Conformal coating meets Class 3C3 standards, enhancing reliability in harsh environments.
• Quick Start & Application Selections: Simplifies installation and parameter setup, saving time and effort.
• Fire Mode Function: Includes PID control and bypass alarm to maintain smoke extraction, water supply, and pressure balance during emergencies.
• Built-in PLC: Includes a 10k step logic controller and Real-Time Clock (RTC) for automation tasks.
• Dual PID Controllers: Two independent PID controllers enhance process control accuracy.
• Safe Torque Off (STO): Built-in SIL2 compliant safety function to meet machine safety requirements.
• Built-in Communication: Supports both Modbus and BACnet MS/TP for seamless integration.
• Optional Communication Cards: Expandable to PROFIBUS DP, DeviceNet, Modbus TCP, EtherNet/IP, and CANopen.

CP2000 Series

Delta's Sensorless Vector Control Drive CP2000 Series has extended the idea of energy saving and uses this principal as the basis of its design. The CP2000 is specifically designed for applications such as air blowers, pumps and HVAC drives with its intelligent PID control providing the greatest efficiency. The Sensorless Vector Control (SVC) offers timely response to load torque increase/decrease which satisfies customer requirements for load changes while enhancing motor performance. A 3-step V/F curve response is used in the variable torque environment to adequately adjust the input voltage and attain the greatest overall performance; this function is especially helpful in pumps and fans applications. It also includes additional functions for operation and protection in variable load environments, such as flying starts, auto-acceleration/deceleration, momentary power loss restarts, auto-tuning, and more. The CP2000 series provides you with the ultimate energy-saving solution for your applications.

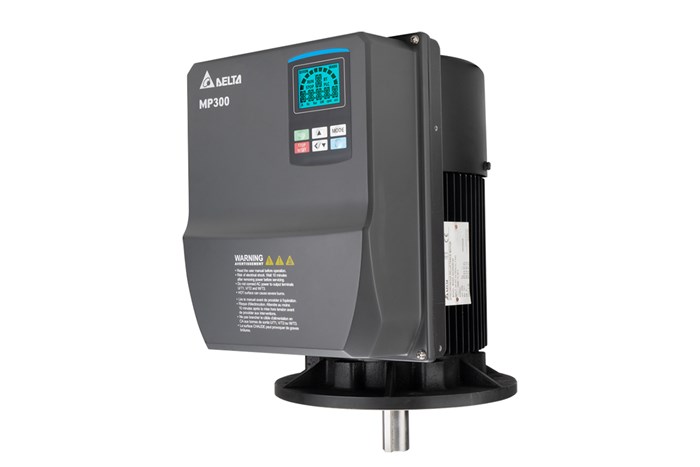

MPD / MP300 Series

Delta's MPD Series delivers high energy efficiency, smart water supply, and easy operation. With IE5 motors and variable frequency control, it achieves IES2-level efficiency. The built-in Real-Time Clock and multi-pump function enable flexible water scheduling. A three-color LCD display ensures a user-friendly interface, while the MP300 inverter allows fast upgrades via the MKMP adapter board.

Features & Benefits

• High-efficiency IE5 Motor: System performance meets EN 61800-9-2 IES2 standards for premium energy efficiency.
• IP55 Enclosure: Provides excellent dustproof and waterproof protection for reliable outdoor and industrial use.
• Built-in PLC & Real-Time Clock: Includes a 14k step PLC and RTC for advanced automation and scheduling tasks.
• Built-in Multi-Pump Function: Supports control of up to 8 pumps, making it ideal for constant pressure systems.
• Advanced Pump Functions: Includes features like pump redundancy, flow rate estimation, and cavitation detection.
• Comprehensive Pump Protection: Monitors and protects against dry-running, burst-pipe, and high/low pressure conditions.
• Optional EMC Compliance: Compatible with EN61800-3 C1/C2 for electromagnetic compatibility.
• Optional Bluetooth Card: Enables remote monitoring and tuning through the Pump APP.
